Overview
Introduction of10.1-inch Windows 10 Rugged Tablet
XUXIN Expad-10 is a Rugged Windows10 Tablet designed specifically for harsh environments. Its excellent explosion-proof performance, sturdy and durable design, support for Windows 10 operating system, and diverse connection methods make it a leader in industrial automation, petrochemicals, outdoor exploration and other fields. Whether in terms of hardware configuration, software ecosystem, or application scenarios, Expad-10 has demonstrated excellent performance and broad application prospects.
Feature of10.1-inch Windows 10 Rugged Tablet
1) Rugged IP68 protection: The tablet is dustproof and waterproof, ensuring reliable performance even in challenging environments.
2) Certified explosion-proof safety: With official explosion-proof certification, it can be safely operated in flammable and explosive settings, preventing accidents caused by sparks or short circuits.
3) Windows 10 operating system: Provides users with access to the full capabilities and extensive application ecosystem of the Windows platform.
4) High-quality 10.1-inch touchscreen: Delivers clear and detailed visuals, offering an excellent viewing and interactive experience. Ample memory and storage: Equipped with 8GB RAM and 128GB internal storage, it ensures fast data processing and efficient storage management.

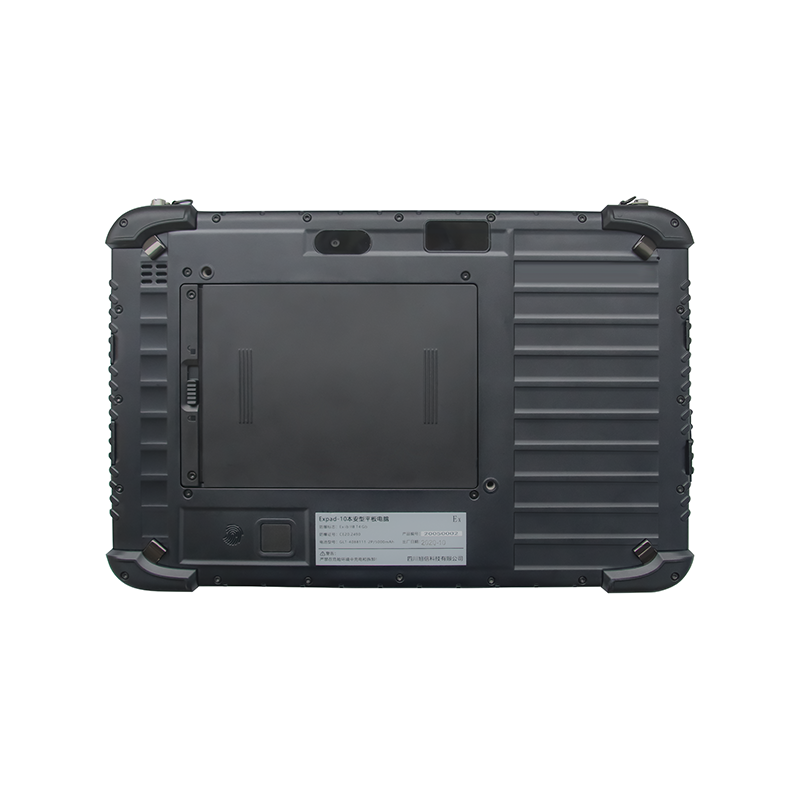

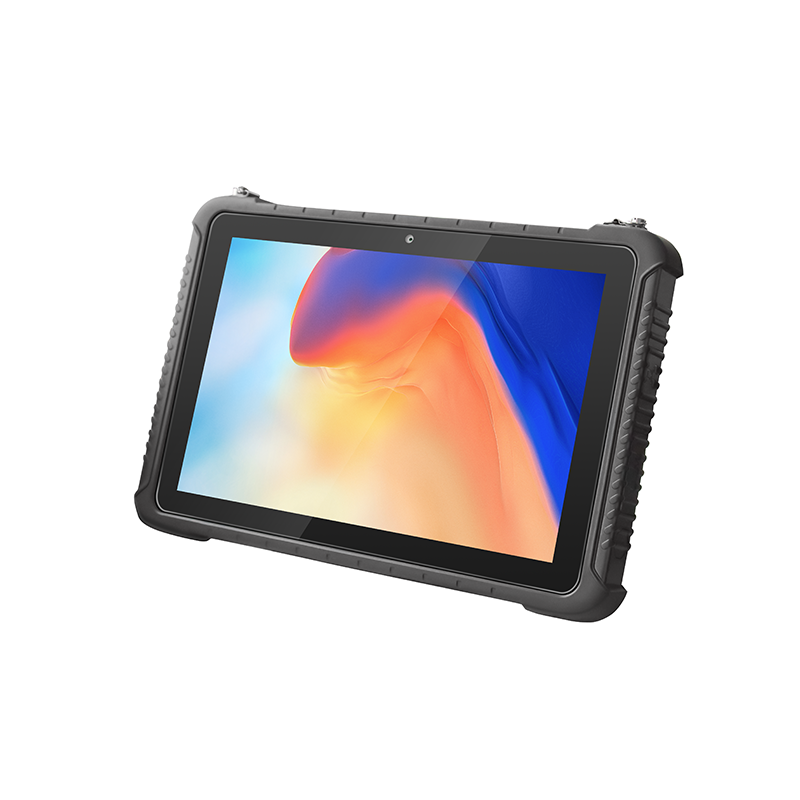

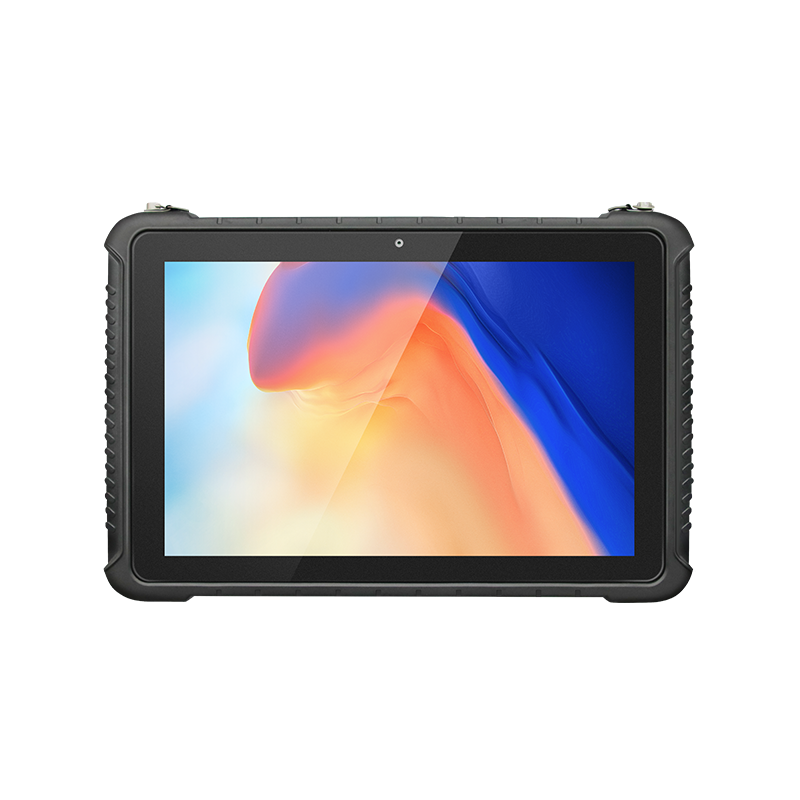

Detail photos of10.1-inch Windows 10 Rugged Tablet
Product parameters of10.1-inch Windows 10 Rugged Tablet
| Explosion proof sign | Ex ib IIB T4 Gb |
| Outline dimension | 280.4*187*26.6mm |
| Weight | Bare machine 1014g |
| Colour | black |
| Screen size | 10.1 inch 16:10 |
| Screen resolution | 1200×1920 |
| Brightness | 330 cd/m2 |
| Touch Screen | 10 point capacitive screen, G+G, hardness above 7H, scratch resistant |
| Front camera | 2.0MP with charging indicator light |
| Rear Camera | 8.0MP （USB） |
| Speaker | Built in 8 Ω/0.8W waterproof speaker x 1 |
| Mic | Sensitivity: -42dB, output impedance 2.2k Ω |
| Battery capacity | Intrinsic safety type 5000mAh |
| Endurance | 6 hours (default 50% volume, default 200 lumens brightness, playing 1080P high-definition video) |
| CPU | Intel JASPER LAKE N5100，4M Cache, 2.20 GHz |
| GPU | Intel® HD Graphics 515 |
| Operating system | windows 10 Home 64bit |
| RAM | 8GB |
| SSD | 128GB，Optional 256GB |
| WIFI | WIFI 802.11 (a/b/g/n/ac) frequency 2.4G+5.8G dual band WIFI Intel 3165D2WG (3.3v) |
| Bluetooth | BT4.2 (BLE) class1 transmission distance: 10m |
| 4G |
Mobile EC25-EC (European version) LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 China (with poor support from China Unicom and China Telecom, only B8 support without TDD frequency band) Europe, Middle East, Africa |
| GPS | support |
| One-dimensional code |
One-dimensional code Optional, MOTO SE655E100R, optical resolution: 5ml, scanning speed: 50 times/s, supports code systems: UPC/EAN, Bookland EAN, UCC Coupon Code,ISSN EAN, Code 128,GS1-128,ISBT 128, Code 39,Trioptic Code 39 , Code 32,Code 93 ,Code 11 |
| QR code |
Optional, EM80 hard decoding, optical resolution: 5ml, scanning speed: 50 times/s, supports code systems: PDF417, MicroPDF417 Data Matrix, Data Matrix Inverse MaxiCode, QR codes, microqr, QR Inverse,Aztec,Aztec Inverses, Han Xin,Han Xin Inverse |
| Expand external storage | TF x1 max：128G |
| SIM | SIM x1 |
| USB2.0 | Micr USB 2.0x1 |
| USB3.0 | USB 3.0x1 |
| DC interface | DC 12V4A ∮4.0mm |
| Headphone jack | ∮3.5mm |
| HDMI interface | HDMI 1.4a Type C |
| Pogo Pin | 12pin Pogo Pin |
| UART serial port | RS232 TTL |
FAQ
Q1. Why choose you?
A1: As a gold supplier ,we have a good reputation on our customers,because of the good quality , suitable price and good service .
Q2. You are factory or trading company?
A2: We are 100% factory.
Q3. What is your payment?
A3: T/T wire bank transfer.
Q4. Can you put my brand name(LOGO)on the products?
A4: Yes,We can. Laser print, Silk print for your choose, MOQ 1000pcs each model
Q5. Can you printed our logo on the product or do the customized package box for us?
A5: Sure, our factory produces OEM/ODM .
Q6. How can you slove the problem if we receive the defective goods？
A6: Send us the pictures or video first time, we will send free replacement spare parts for you.
