Overview
Introduction of Excam1802s Explosion Proof Camera
XUXIN Excam1802s Explosion proof Camera, with its excellent explosion-proof performance, outstanding protection performance, professional shooting performance, and rich functional features, can play an important role in various harsh environments, bringing convenience and benefits to users' work.
Feature of Excam1802s Explosion Proof Camera
1) High-resolution imaging: Boasts a total of approximately 12.7 million pixels, with 12 million effective pixels, allowing for sharp and detailed photos.
2) Flexible aspect ratios: Supports multiple frame formats, including 4:3, 3:2, 16:9, 1:1, and 3:4, for versatile composition options.
3) Advanced lens system: Features a 7-group, 9-element lens with a focal length range of 4.5mm–18.0mm (35mm equivalent) and 4x optical zoom for capturing both wide-angle and distant subjects.
4) Adjustable aperture: Maximum aperture ranges from f/2.0 at the wide end to f/4.9 at the telephoto end, providing flexibility for different shooting conditions.
5) Convenient display: Equipped with a 3.0-inch color LCD screen with ±7 levels of brightness adjustment, ensuring clear viewing under various lighting environments.

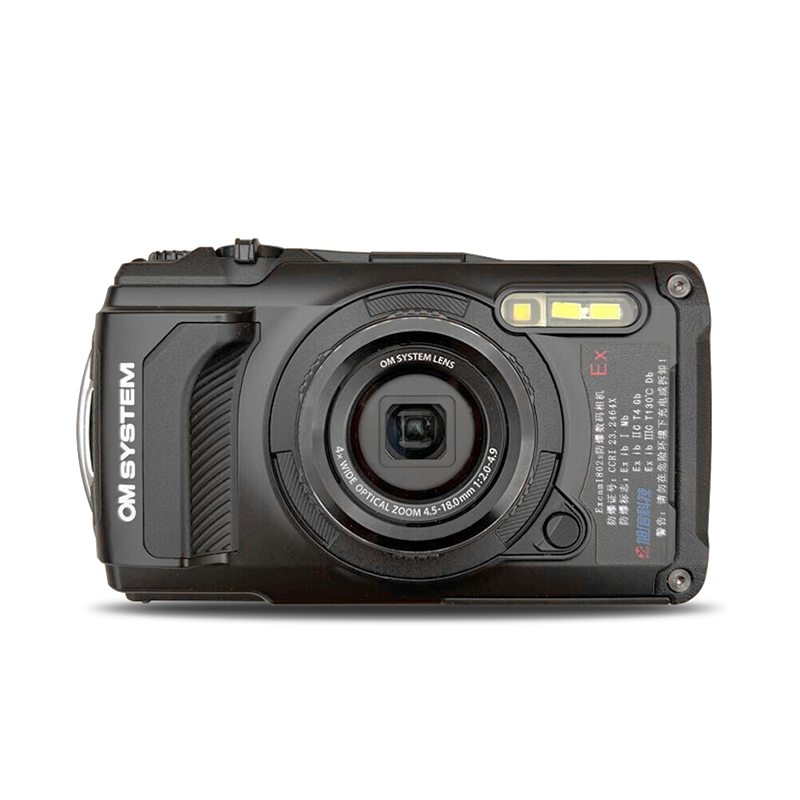

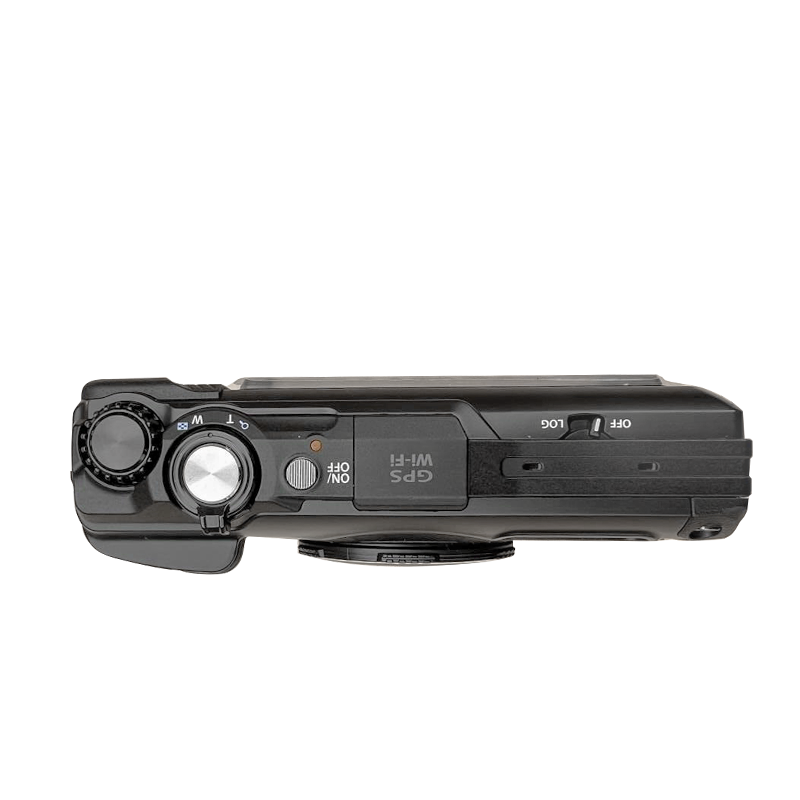

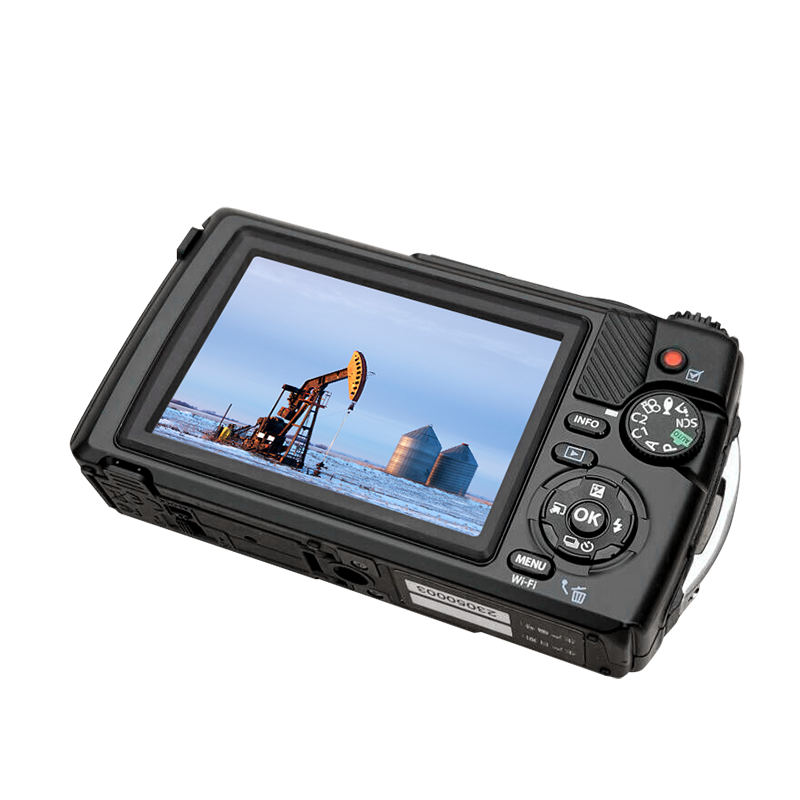

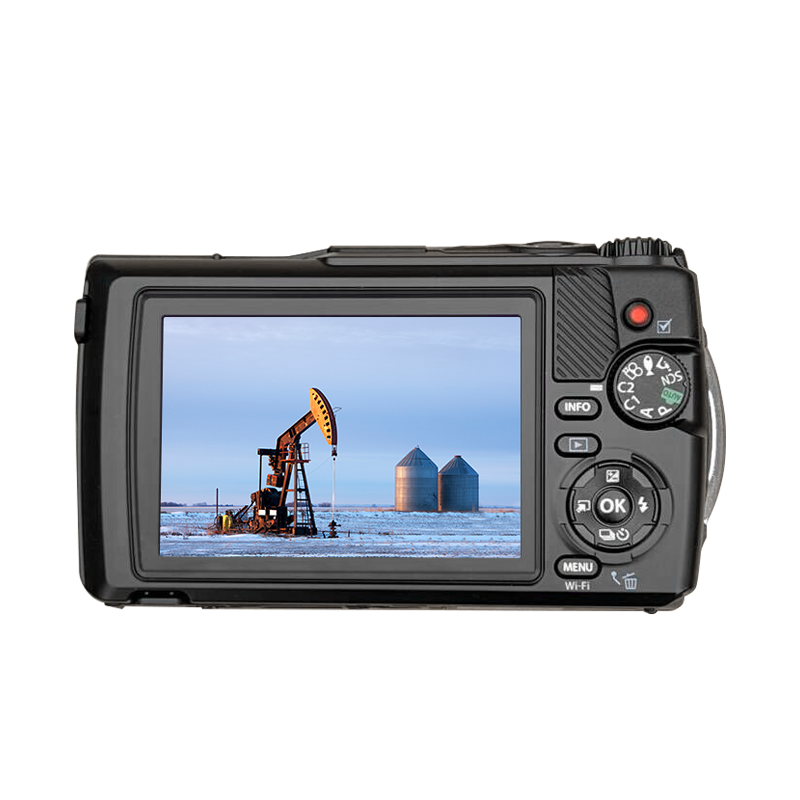

Detail photos of Excam1802s Explosion Proof Camera
Product parameters of Excam1802s Explosion Proof Camera
Explosion proof mark | Ex ib I Mb；Ex ib IIC T4 Gb；Ex ib IIIC T130℃ Db |
Aspect ratio | 4:3、3:2、16:9、1:1、3:4 |
Number of pixels | Effective pixel count: 12 million pixels Total number of pixels: approximately 12.7 million pixels |
Shooting range (from the end of the lens) | The entire zoom range: 0.1m - infinity (super macro: less than f=5.4mm, from 0.1m to 0.3m/greater than 5.4mm, from 0.01m to 0.3m/microscope: 0.01m-0.30m) |
Panel type | 3.0-inch color LCD |
Brightness control | ± 7 gears |
Shutter speed | 1/2 to 1/2000 seconds (night view, automatic mode: no more than four seconds) |
Record format | DCF2.0、Exif2.3 |
File format | RAW (12 bit lossless compression), JPEG, RAW+JPEG |
Image size | [RAW] 4000*3000 |
Image mode | [JPEG] 4000*3000-1280*960 |
Grayscale | Automatic enhancement, vibrant, natural, elegant, portrait, single tone, custom, perfect portrait and artistic filters |
Record format | MOV(MPEG-4AVC/H.264) |
Delayed Video | [MOV] 3840*2160(4K)/5fps 1920*1080(FHD)/5fps,10fps,15fps 1280*720(HD)/5fps,10fps,15fps,30fps |
High speed video | 1920 * 1080 (FHD)/120fps, shooting time of 20 seconds 1280 * 720 (HD)/240fps, shooting time of 20 seconds 640 * 360 (SD)/480fps, shooting time of 20 seconds |
Storage Medium | SD card, SDHC card, SDMC card |
Sound recording | support |
WI-FI function | support |
Remote controller interface | USB (micro-B) |
HDMI interface | Micro HDMI (Class D) |
Computer interface | High speed USB 2.0 |
DC interface | USB Mini B |
Playback function | support |
Image editing | support |
Flash lamp | support |
Focusing | support |
Language | Supports multiple languages |
Accelerometer | support |
Temperature sensor | support |
Pressure gauge | support |
Compass | support |
Intrinsic safety battery capacity | 1100mAh |
Work Environment | |
Relative humidity | ≤95％(25℃) |
Atmospheric pressure | 80 kPa～106kPa |
Storage temperature | -40℃～+60℃ |
Applicable places | Can be used in Zone 1 and Zone 2, Class IIA, IIB, IIC gas environments, and can also be used in combustible dust environments. |
Protection level | IP68 |
Size | 113 mm × 66mm × 32.4mm (based on CIPA standards, excluding protruding parts) |
Weight | Approximately 253g (including battery and memory card, based on CIPA standards) |
FAQ
Q1：Can I customize Explosion proof Camera?
A1：Sure, our factory produces OEM/ODM .
Q2： Can you put my brand name(LOGO)on the products?
A2: Yes,We can.
Q3. Why choose you?
A3: As a gold supplier ,we have a good reputation on our customers,because of the good quality , suitable price and good service .
Q4. How can you slove the problem if we receive the defective goods？
A4: Send us the pictures or video first time, we will send free replacement spare parts for you.
Q5：Are you a trading company or a manufacturer?
A5：We are a manufacturer with over 10 years of experience. Welcome to visit our factory.
