Overview
Introduction ofAndroid 14 Rugged Tablet
T1 is an 8.68 inch waterproof rugged tablet made of ABS+PC material, weighing approximately 569g. It is equipped with an MT8781 eight core CPU, 8GB+128GB storage, Android 14 system, supports IP68, MIL-STD-810H certification, NFC, dual cameras, 8000mAh battery, and is suitable for multiple scenarios.
Feature ofAndroid 14 Rugged Tablet
1) Excellent rugged protection: With 1.22m drop resistance, IP68 waterproof and dustproof rating, and explosion-proof certification, it operates reliably in temperatures from -20°C to 60°C.
2) Clear and responsive display: The 8.68-inch HD screen supports operation with wet hands or gloves and features 7H hardness for superior scratch resistance.
3) Powerful endurance with fast charging: Equipped with an 8000mAh battery offering up to 11 hours of use and 33W fast charging that fully recharges in about 1.5 hours.
4) Comprehensive network connectivity: Supports dual-band Wi-Fi, Bluetooth 5.1, 4G multi-band communication, and multiple satellite positioning systems.
5) Flexible expansion options: Includes Type-C interface, Dual SIM/TF (two-in-three design), and NFC functionality for efficient data collection.

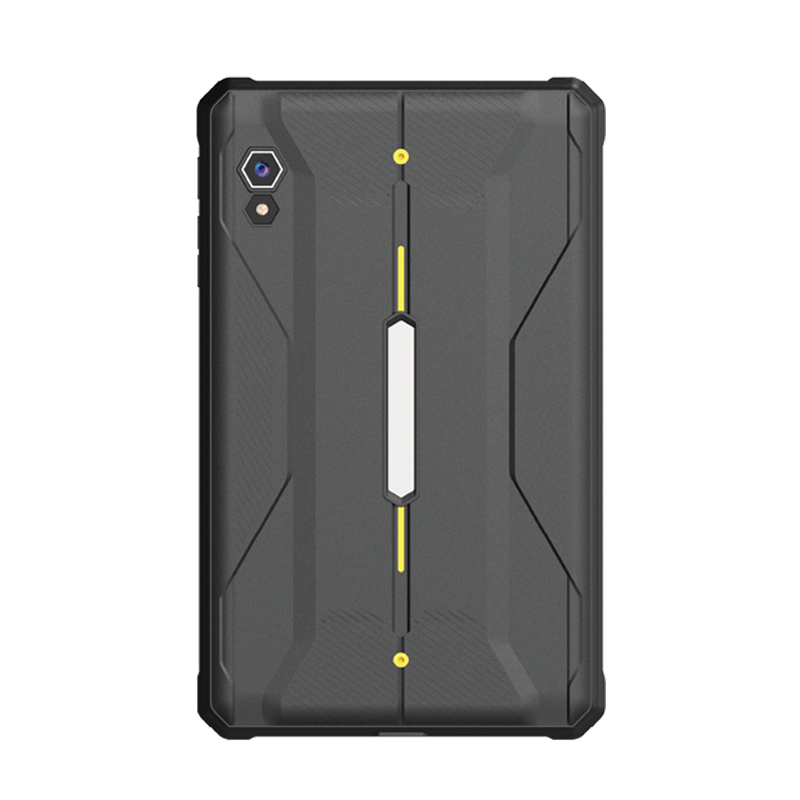

Detail photos ofAndroid 14 Rugged Tablet
Product parameters ofAndroid 14 Rugged Tablet
| Tech Spec | |
| Product Form | Rugged Tablet |
| Material | ABS+PC |
| Dimension | 220.14*135.5*14mm |
| Weight | Approximately 569g |
| Product Color | Black+Orange |
| CPU | MT8781 Octa-core, 2x A76 2.2GHz, 6x A55 2.0GHz |
| GPU | ARM G57 MC2 |
| Memory |
RAM 8GB LPDDR4x ROM 128GB UFS2.2 (Optional 8+256GB for bulk orders.) |
| Operating System | Android 14/ GMS |
| Display | Type: TFT |
| Size | 8.68 inch |
| Display |
Type: TFT Size: 8.68 inch Resolution: 800*1340 Brightness: 400cd/ ㎡ Support wet hands and gloves operation. |
| Touch Pannel | Asahi Glass Cover, 10-point capacitive screen, Hardness above 7H, Scratch-resistant. |
| Camera |
Front 32MP, Fixed Focus Rear 48MP, Autofocus, Supports PDAF |
| Flashlight | True Flash |
| Buttons |
Power *1 Volume + Key *1 Volume - Key *1 |
| Indicator Light | Indicator light *1, R/G dual-color light: Red constant when charging, green constant when fully charged (above 90%), red flashing when low battery (0-15%), off when discharging. |
| Audio |
Speaker*2 Each 6Ω/2W Single MIC Motor*1 Audio SMART PA |
| Sensor | Geomagnetic Sensor, Gyroscope, Gravity Sensor, Light Sensor, 3D Accelerometer |
| Battery |
Built-in Polymer Lithium-ion Battery 8000mAh/3.85V Battery Life： Approximately 11h13min(The default volume is 70dB, Default 300 nits brightness; Playing 1080P HD video) Charging Power: 33W/PD 3.0 PPS Protocol Charging time：Approximately 1h26min |
| WIFI |
WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.0G Dual-band WIFI, Supports AP seamless roaming |
| Bluetooth | BT5.1 (BLE) class1 Transmission Distance: 30m |
| 4G | GSM(B2/3/5/8)+WCDMA(B1/2/4/5/8)+TDD(B34/38/39/40/41)+FDD(B1/2/3/4/5/7/8/12/17/18/19/20//25/26/28A/28B/66) |
| GPS |
Supports GPS(L1 1.575GHz C/A code)/Beidou/Galileo(L1 1.602GHz)/GLONASS Supports AGPS Cold Start Time: <60 seconds |
| I/O Interfaces | Type C *1 (Charging/Data/Earphone/Reverse charging 6W) |
|
TF Card *1 SIM Card *2 2 of 3 card slot (Nano Sim+TF or Nano Sim+Nano Sim) |
|
| Power Adapter | USB Type-C port, Charging Power: 33W |
| Type-C Cable | Type-C Cable（1m） |
| Rugged Features | Drop Height: Withstands drops from 1.22 meters onto composite wood flooring, while powered on. |
| Working temperature: -20 °C to 60 °C | |
| Storage temperature: -30 °C to 70 °C | |
| Humidity: 95% Non-Condensing | |
| Electrostatic Discharge: Contact Discharge ±8KV, Air Discharge ±12KV | |
| OVP: Threshold 20V | |
| EOS: VBUS 300/80us VBAT 300v/20us | |
| Certifications | IP68 |
| CE | |
| CCC | |
| FCC | |
| ATEX Zone 2/22 | |
| MIL-STD-810H | |
| Data Collection | NFC |
| Supports ISO18092, ISO14443 A/B, ISO15693 protocols, Mifare compliance，Card reading distance from 0 to 4 cm，Frequency: 13.56MHz | |
| Supports Face Unlock | |
FAQ aboutAndroid 14 Rugged Tablet
Q1: How much storage expansion is supported?
A1: Supports TF card expansion, batch orders can choose 8+256GB storage
Q2. How is the camera configuration?
A2: Front 32MP fixed focus, rear 48MP autofocus+true flash
Q3. What accessories are standard?
A3: Strap, 33W fast charging adapter, 1m Type-C cable
Q4. Can it be charged in reverse?
A4: Yes, Type-C interface can charge 6W in reverse direction
Q5. Is facial unlocking supported?
A5: Supports facial unlocking to improve convenience of use
