Overview
Introduction of C6200 UHF RFID Handheld Barcode Scanner
The C6200 is an industrial barcode handheld terminal featuring a 5.5-inch 720*1440 TFT LCD touch screen, octa-core Cortex A73 processor, 4GB RAM+64GB ROM, and Android 10/13 OS. It supports 4G/WiFi/Bluetooth 4.2 for fast data transmission, optional 2D barcode scanning, multi-band RFID, and fingerprint recognition. With IP65 protection, -20℃~50℃ operating temp, 5200mAh battery (8+ working hours), and expandable storage, it’s ideal for logistics, express, and retail.
8000mAh large capacity battery for continuous full-shift operation.
Support bulk reading of up to 200+ tags per second.
Feature of C6200 UHF RFID Handheld Barcode Scanner
1)Industrial and Humanized Hardware Design
Industrial&humanized keypad design and 5.5 inch touch screen together with high resolutionof 720*1440display shall match high standards inlogistics, express and retail.
2)Octa-Core Processor & Large Memory
Android 10/13 OS with memory of 4GB RAM/64GB ROM shall provide the highly standard experience.
3)Superior Data Communication and Security Guarantee
Double insurance of 4G &WlFl network and highly secured Android system shall provide the high speeddata communication and perfect security quarantee.
Detail photos of C6200 UHF RFID Handheld Barcode Scanner
Product parameters of C6200 UHF RFID Handheld Barcode Scanner
Basic Parameter | |
Overall size |
170x81x28+2mm |
Overall weight |
400g(including battery&wrist strap) |
Display screen |
Tough 5.5in. TFT LCD( 720*1440) |
Touch screen |
Support capacitive pen multi-touch |
Expansion slot |
1 TF slot, 2 PSAM,2 Sim |
Interface |
Type-c data interface |
Indicator lamp |
Charge indicator lamp |
Keyboard |
F1-F4 custom keys/2 scan keys |
Camera |
Front camera 5MP, Rear camera 13 MP |
Flashlight |
Low power LED lighting emergency use |
GPS |
GPS(embedded A-GPS)accuracy of 10 m |
Performance Parameter | |
CPU |
Cortex A73, 2.0GHz Octa core |
Storage |
RAM:4GB ROM:64GB |
Extended |
Support MicroS（max 256GB expansion） |
OS |
Android 10/13 |
Data communication |
4G:TD-LTE Band38/39/40/41 FDD-LTEBand 1,2,3,4,7,17,20 3G:WCDMA(8501900/2100MHz) 2G:GSM/GPRS/Edge (850/900/1800/1900MHz) |
WIFI |
2.4G/5G dual band. Comp; iance with IEEE802.11a/b/g/n/ac |
Bluetooth |
Bluetooth 4.2 |
Battery Performance | |
Battery capacity |
5200mAh Rechargeable li-ion polymer,3.8v |
Standby time |
About 360 hours after turn off all functions |
Charging time |
Less than 4 hours |
Working hours |
More than 8 hours (once full charge) |
Barcode Acquisition(optional) | |
Scan engine |
2D barcode Scanner |
Supports 2D barcode types |
All major 1D barcode |
PDF417.MicroPDF417,Composite,RsS,TLC-39,Datamatrix,OR code,Micro OR code,Aztec, Maxi Code,Postal codes,US Post Net,US Planet, UK Postal, Australian Postal,Japan Postal, Dutch Postal etc. | |
RFID(optional) | |
RFID LF |
Frequency 125KHz/134.2KHZ(FDX-B/HDX) |
Protocol ISO11784&11785 | |
R'w Range 0cm to 7cm | |
RFID HF/NFC |
Frequency 13.56MHz |
Protocol ISO14443A/B ISO15693,NFC-IP1,NFC-IP2.etc. | |
R/w Range 0cm to 3cm | |
RFID UHF |
Frequency 865-868MHz or 920-925MHz |
Protocol EPC C1 GEN2/ISO 18000-6C | |
R/w Range 0 to 2m(tags and environment dependent) | |
Antenna Gain Circular antenna(2dBi) | |

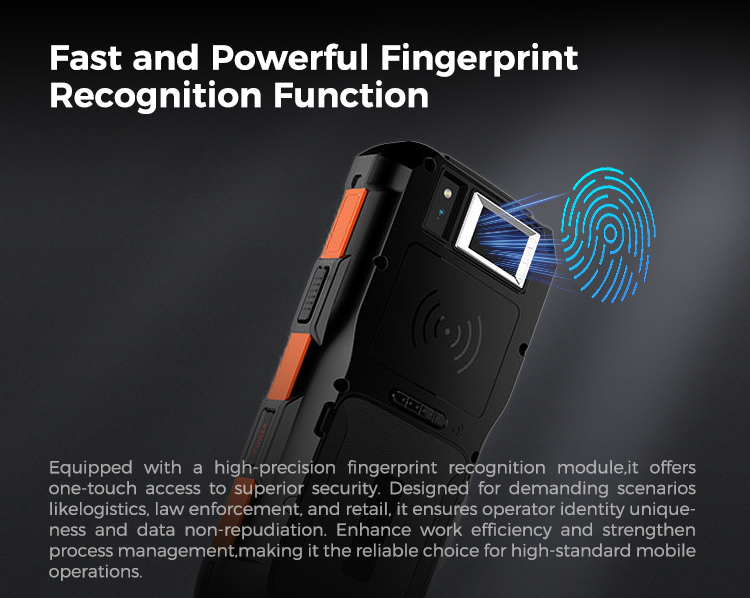

Fingerprint reader(optional) | |
Sensor |
TCS1 |
Sensor type |
Capacitive, area sensor. |
Resolution |
500 DPI. |
Performance |
FRR<0.008%，FAR<0.005% |
Capacity |
1000 |
Psam (optional) | |
Protocol |
ISO7816 |
Baud rate |
9600,19200,38400,43000,56000,57600,1152001 |
Slot |
2 slots(maximum) |
Working Environment | |
Operating Temp |
-20℃~ 50℃ |
Storage Temp |
-20℃~70℃ |
Humidity |
5%~95%6(non-condensation) |
lP rate |
IP65 |
FAQ about C6200 UHF RFID Handheld Barcode Scanner
Q1: What OS and storage does the C6200 offer?
A1: It runs Android 10/13, with 4GB RAM and 64GB ROM (supports up to 256GB MicroSD expansion).
Q2: Is the C6200 suitable for harsh environments?
A2 Yes, it has IP65 rating, operating at -20℃~50℃ and 5%~95% non-condensing humidity.
Q3: What communication methods does it support?
A3: 4G, 3G, 2G, dual-band WiFi (2.4G/5G), and Bluetooth 4.2.
Q4: How long does the battery last on a full charge?
A4: It provides over 8 hours of working time and up to 360 hours of standby.
Q5: What optional functions does the C6200 have?
A5: 2D barcode scanning, RFID (LF/HF/UHF), fingerprint reader, and 2 PSAM slots.
