Overview
Introduction ofIP68 Waterproof Explosion Proof Body Camera
YHJ3.7 is an explosion-proof body worn camera integrating video recording, photography and audio recording. It features IP68 protection, a 2150mAh battery that lasts for over 6 hours, and supports infrared night vision and digital zoom. It is suitable for multiple industries and can record the working site conditions.
Feature ofIP68 Waterproof Explosion Proof Body Camera
1) Dual-environment explosion-proof design: Compliant with relevant explosion-proof standards for both coal mine and chemical industry applications, ensuring safe operation.
2) High-definition versatile recording: Supports 1296P HD video capture with multiple resolution and frame rate options to suit different recording needs.
3) Long-lasting power and expandable storage: Equipped with a 2150mAh battery providing over 6 hours of continuous use, and storage can be expanded up to 128GB.
4) User-friendly operation: Features one-touch recording and playback, with the ability to start recording directly even when the device is powered off.
5) Robust environmental performance: IP68-rated for dust and water resistance, capable of clearly capturing human faces up to 10 meters away in low-light or dark conditions.
Detail photos ofIP68 Waterproof Explosion Proof Body Camera
Product parameters ofIP68 Waterproof Explosion Proof Body Camera
| Explosion-proof mark | Ex ib I Mb Ex ib IIC T4 Gb |

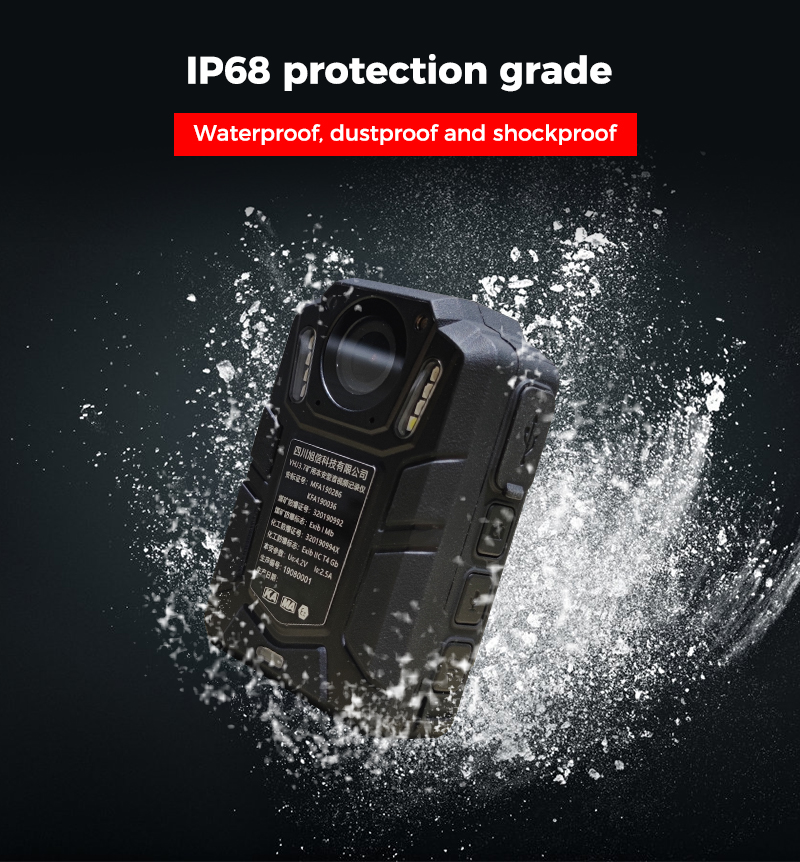

| Protection grade | IP68 |
| External dimensions | 80× 55× 30.85mm |
| Weight | 160g |
| Working voltage | 3.6V-4.2VDC |
| Maximum operating current | ≤ 500mA |

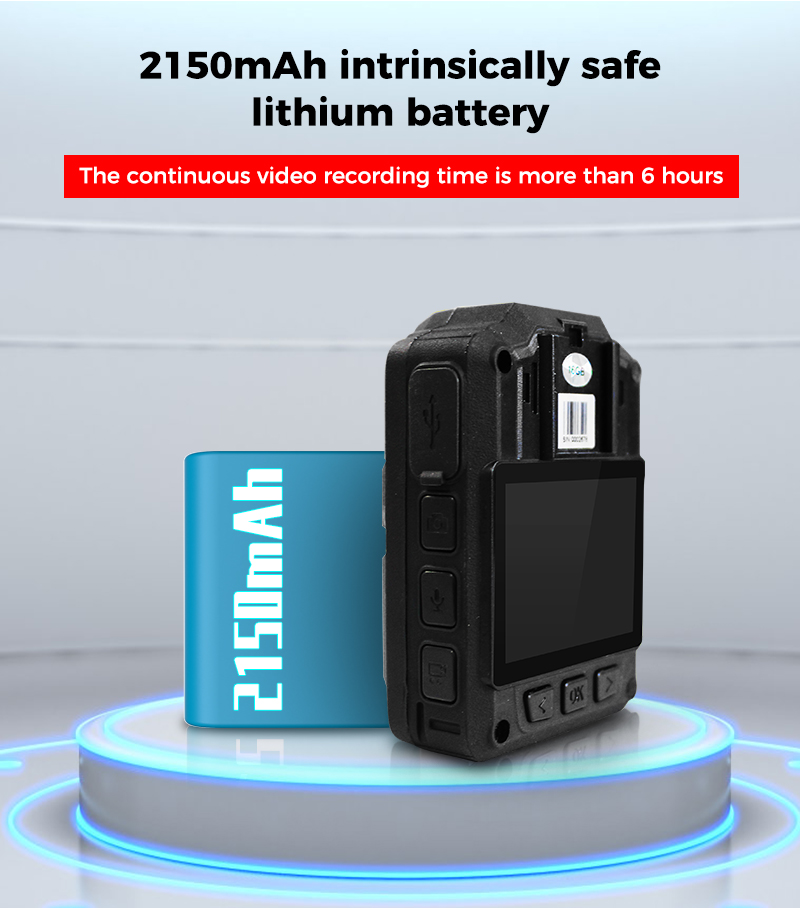

| Battery capacity | 2150mAh |
| Startup time | 2s |

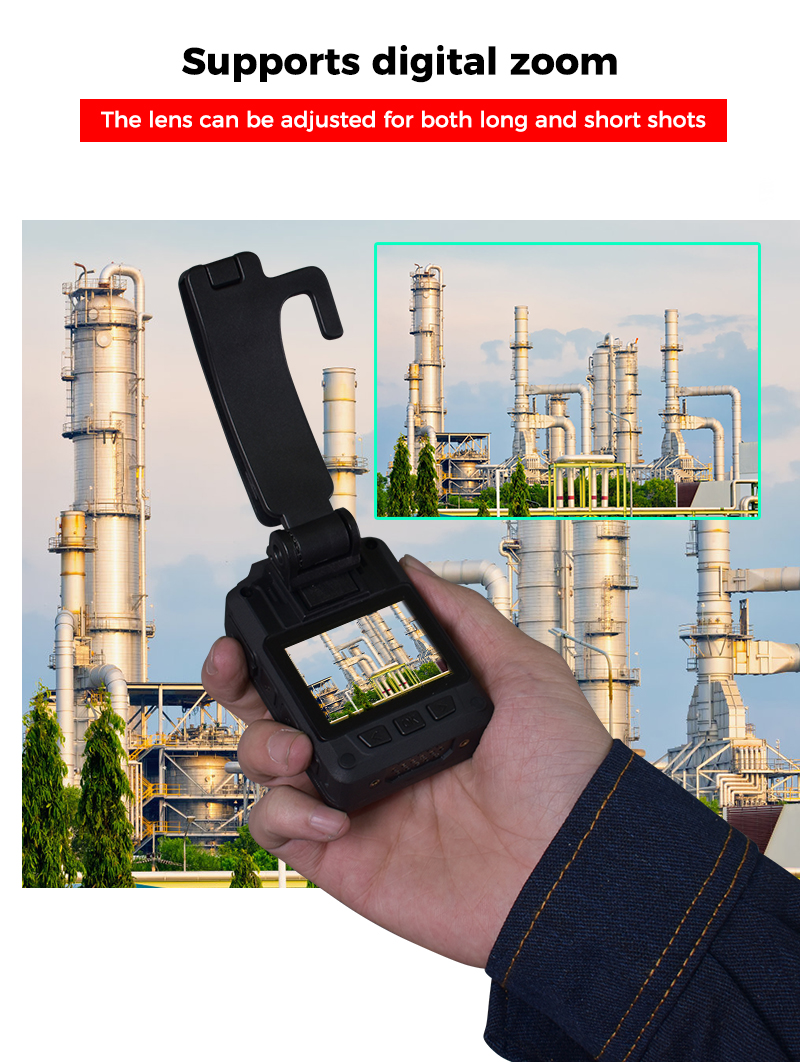

| Digital zoom | The lens can be adjusted for both long and short shots and supports digital zoom |
| Compatible system | Windows(98/2000/ME/XP/7/8/10) |
| Display screen size | 2-inch LCD full HD display screen |
| Superimposed watermark | Support |
| Video recording function | One-click recording (When the device is turned off, simply press the "Record" button to enter the recording process) |
| Video snapshot | Support |
| Video format | MOV/MP4/AVI |
| Video shooting | Supports 1296P high-definition shooting. And there are six resolutions available for selection: 2304*1296, 2560*1080, 1920*1080, 1440*1080, 1280*720, and 848*480. When the video resolution is 2304*1296, 2560*1080, 1440*1080, 720*480 and 848*480, the video frame rate is 30 frames per second. When the video resolution is 1920*1080, the video frame rate can be selected as 30 frames per second or 45 frames per second. When the video resolution is 1280*720 and 848*480, the video frame rate can be selected as 30 frames per second, 45 frames per second or 60 frames per second. |
| Video replay | When the law enforcement recorder plays back videos on this device, it has the functions of 2x, 4x, 8x, 16x, 32x, 64x, and 128x fast-forward or fast-forward rewind. |
| Pre-recording/Extended recording | Support. It can pre-record and extend video information for 45 minutes before and after at a resolution of 2560*1080. |
| Maximum recording interval time | This machine adopts an automatic segmented recording mode, with no interval in the recording time between adjacent two video segments. |
| Segmented video | This machine can be set with segmented videos of 5 minutes, 15 minutes, 20 minutes, 30 minutes, etc |
| Photo format | JPEG |
| Photo pixels | It supports a maximum of 50 million pixels. And the effective pixels are 9472*5328, 8000*4768, 8000*4500, 7808*4392, 7360*4140, 7552*4248, 7104*3996, 6720*3780, 6400*3600, 6144*3456, 6016*3384, and 5344 Options include 3006, 4608, 2592, 4224, 2376, 3776, 2124, and 2688. |
| Wide-angle lens | 170° |
| Anti-shake function | Electronic image stabilization |
| Shutter control | Electronic shutter |
| Exposure method | Automatic |
| Audio format | WAV |
| One-click recording | Supports individual recording and dual microphone noise reduction |

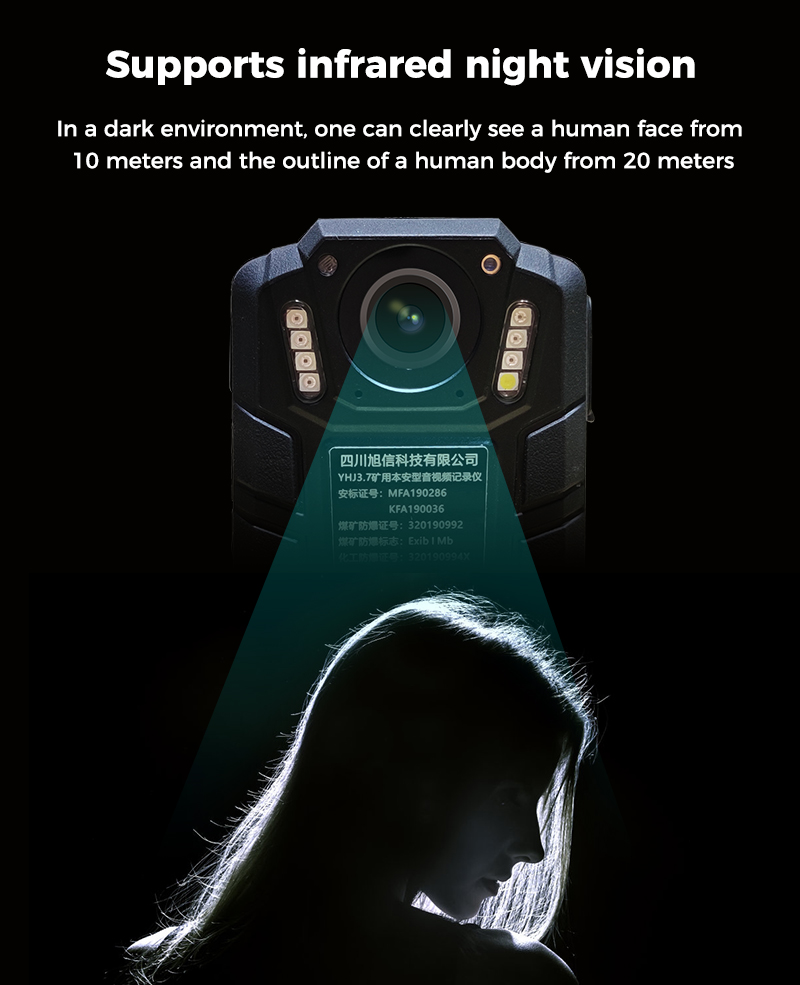

| Infrared night vision | In a dark environment, one can clearly see a human face from 10 meters and the outline of a human body from 20 meters |
| Infrared switching | Manual/Automatic switching |
| Press the key to turn off the sound function | The recorder can be set with a sound for the off button |
| Vibration prompt off function | The recorder can be set to turn off the vibration prompt |
| Indicator light off function | The recorder can be set with an off indicator light |

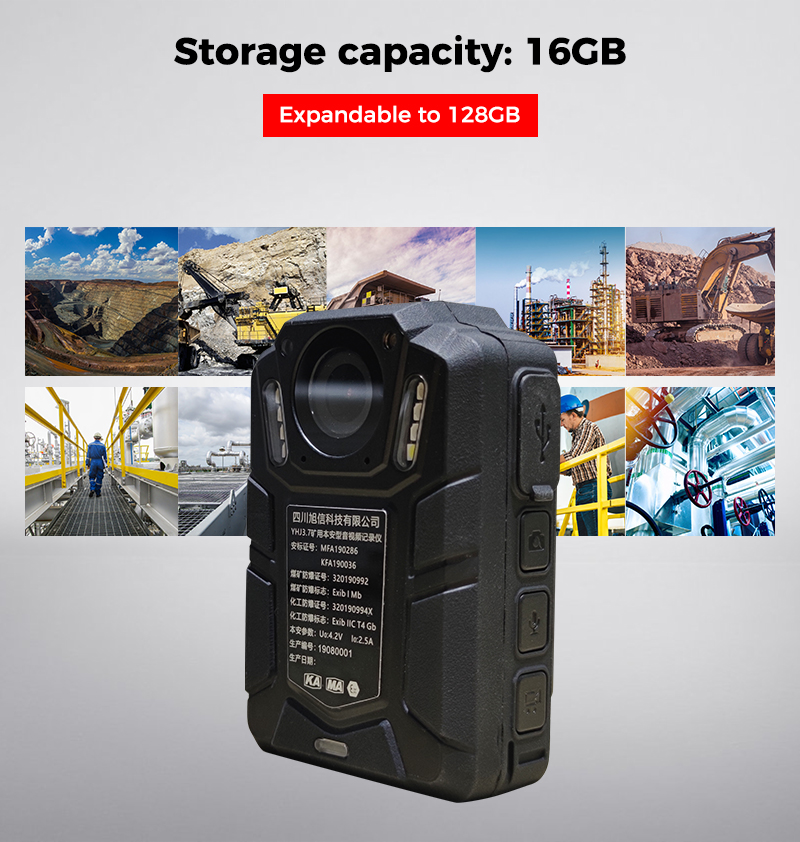

| Storage capacity | 16GB, expandable to a maximum of 128GB. |
| One-click playback | The recorder can play back the most recent video/audio/image file with one click in standby mode |
| File tag | The video being shot can be highlighted by pressing the corresponding keys. Highlighted files will not be automatically cleared when uploaded to the background collection station. |
| Password protection | Software password protection, preventing tampering and deletion |
| Log function | All files are attached with information such as the time, product number, and user number |
| Voice broadcast | When the recorder is turned on, it can announce the user number and the hour |
| Laser positioning | Position the shooting to keep the picture from shifting |
| Motion detection | After enabling the motion detection video recording function, in the viewfinder preview mode, when a moving object enters the shooting range of the recorder, the recorder will automatically start recording |
| White fill light function | The white fill light can be manually turned on to supplement the light, allowing for normal shooting in low-light conditions |
| Parameter setting | The recorder can set the video resolution, photo pixel count, etc. in the menu |
| Automatic save function after power failure | The recorder can automatically save the recorded files before the battery runs out and then shut down |
| External camera function | It can be connected to an external small camera to provide video source for this machine. The horizontal field of view of the small camera is ≥ 140° |
| Power-saving mode | The automatic screen-off and automatic shutdown times of this machine can be set. |
| Charging function | This machine can be charged through dedicated adapters, computer USB cable interfaces, car chargers and other charging interfaces. A car charger can be optionally equipped for this machine. |
FAQ aboutIP68 Waterproof Explosion Proof Body Camera
Q1: Which system connections does the device support?
A1: Supports Windows 98/2000/ME/XP/7/8/10 systems.
Q2: What is the maximum pixel of the photo?
A2: Supports up to 50 million pixels, with multiple effective pixels to choose from.
Q3: Can the sound of the off button be set?
A3 is fine. The key sound of the recorder can be turned off in the Settings.
Q4: Will files be lost after a power outage?
A4: No. Before the battery runs out, it will automatically save the recorded files and then shut down.
Q5: Are there any field of view requirements for external cameras?
A5: Yes, the horizontal field of view of the external small camera needs to be ≥ 140°.
